The RB4226 is a ultimate blast cabinet for small to medium sized projects. The extremely efficient media syphon system makes this cabinet second to none in performance compared to similar sized cabinets on the market. Whether you are stripping old paint or removing built up rust the RB4226 blasting cabinet is going to perform again and again.
Every RB4226 is hand made in the USA! The cabinet body is made from 14ga and 16ga steel sheet that is laser cut and hand welded to ensure perfect seams that do not leak media during use. The door panels are constructed from 10ga steel sheet to guarantee a perfect seal and prevent media loss from the cabinet. When you blast with a Raptor Blaster cabinet, the media will say inside the cabinet and away from the rest of your shop!
Each cabinet comes ready to use with an air hookup, a powerful 20watt LED lamp, and an RB100DC dust collector! The RB100DC is a 100CFM dust collector unit that helps to keep your view clear of dust and haze as you blast! We do offer upgrade bundles to ensure you can get the most out of your cabinet if your application requires. Buy yours today!
American Made
Solid welded steel construction
Durable powder coat finish

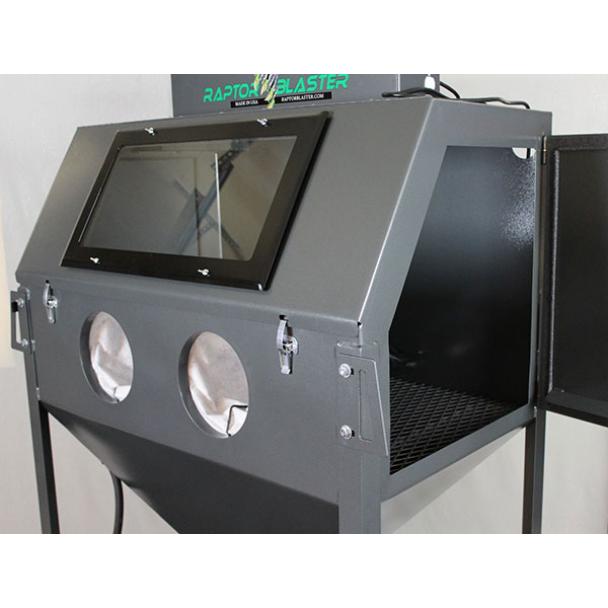

2x Side door openings (21.5" x 20")
1x Front door opening (38.5" x 15")
Included dust collector
Powerful 20watt LED
Foot pedal operated
Customizable to suit your needs
Air Requirement: 60 CFM (With #5 Nozzle)
Power Requirement: 3-Prong 110V
Interior Lighting: 1x 20watt LED
Overall Height: 69.79"
Overall Width: 46.471"
Overall Depth: 27"
Front Door Opening: 38.5" x 15"
Side Door Open: 21.5" x 20"
Cabinet Weight: 300lbs (Empty)

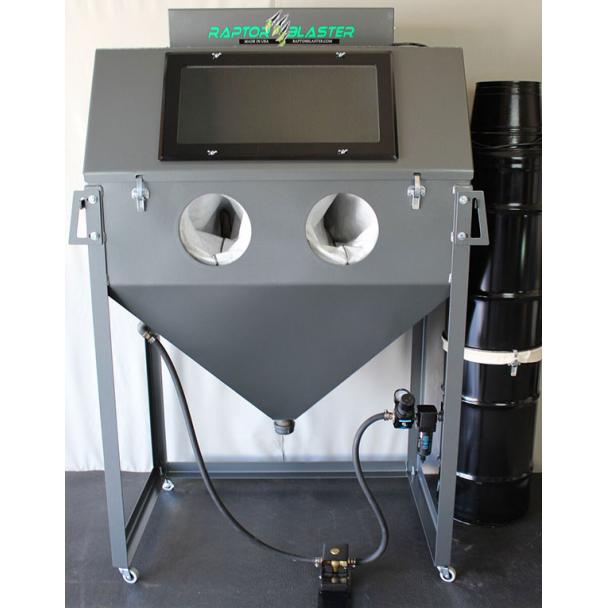

The RB4226 comes standard with the RC100DC dust collector. This dust collector utilizes a 1/3hp motor to pull 100cfm of air from the cabinet while blasting.
The RB100DC uses a weighted cloth bag to filter out dust and debris. This unit draws the dust and debris out of the cabinet into the lower half of the collector unit for easy cleaning. The cloth bag is initially drawn upwards by the powerful motor and fan where is catches particulate before exhausting clear air out of the top. Each time you turn off the collector the cloth bag falls back downwards effectively clearing the debris the filter material for the next use!
This is the perfect fit for most hobbyists and home shops looking for a powerful and reliable system that will last them a life time!
The RB500DC dust collector upgrade provides you with 500cfm of vacuum to guarantee better visibility and cleaner media while blasting.
Additionally, the RB500DC utilizes a pleated cylindrical cartridge style filter in place of the weighted cloth bag seen in the RB100DC system! Raptor Blaster's Easy Clean system allows you to force air backwards through the filter and expel debris from the filter, letting it fall down into the bottom debris hopper for easy removal via the port at the bottom of the hopper.
This system provides better filtering and filter life as there is more surface area within the filter to capture media and debris before it is exhausted out of the top of the collector.
This package includes the same RB500DC dust collector seen above in "Option 2" but adds the RB500RE media reclaimer to filter out healthy media before it is combined with the dust and debris at the bottom of the dust collector!
The RB500RE media reclaimer sits upstream from the dust collector and is responsible for separating healthy media from the dust and debris pulled from the cabinet by the dust collector system. This process protects the dust collector filter as well as preventing unnecessary media loss to the dust collector.
Captured media can be easily drained from the reclaimer via the port at the bottom of the hopper and reintroduced to the cabinet. This will help you get the most out of your media while not sacrificing visibility!
Upgrading your cabinet with the RB900DP direct pressure system will turn this cabinet into a high volume production machine that can handle any task you have for it!
The RB900DP is a state of the art system the offers a 1.5cuft direct pressure blast pot with high quality micro-metering valve, a cartridge style timed reverse pulse dust collector, and extra large media reclaimer. This system is the best on the market!
The RB900DP system combines the best features from the other previously discussed options into one package, increased their capacity, and provides the additional benefit of converting the RB4226 cabinet from a syphon style cabinet to a direct pressure cabinet. Direct pressure cabinets can strip parts 3-4x faster as they do not rely on the air vacuum to supply media to the gun, the pressurized air is mixed with media in the pressure pot. This guarantees consistent and strong media flow every time you press the foot pedal!
