California Air Tools 20060 Ultra Quiet 220v 6HP 20gal Air Compressor

$2,175.00
Optional Hardware

Notify me when back in stock

Description

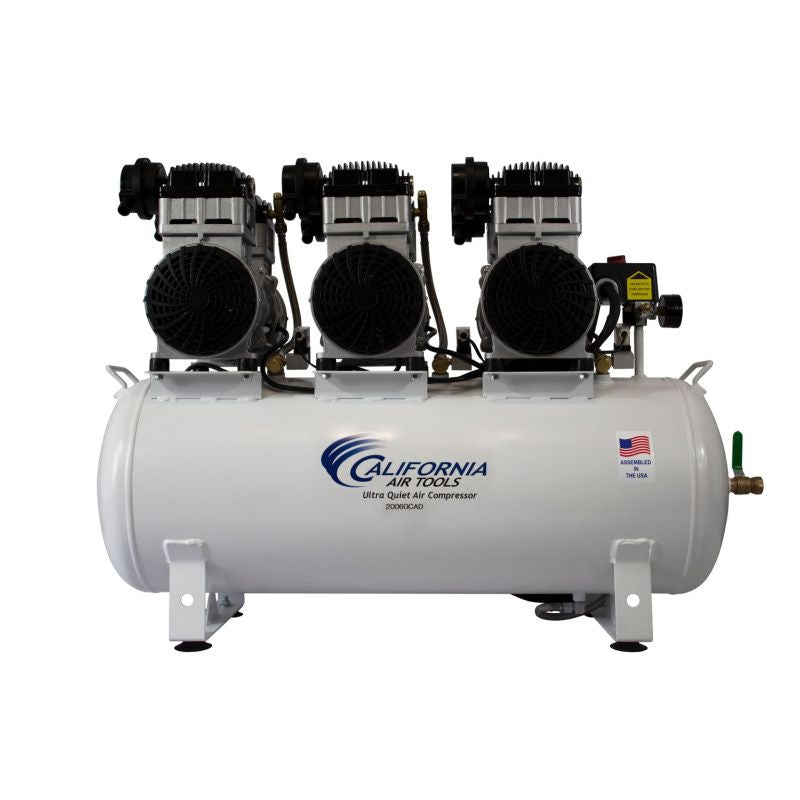

The California Air Tools 20060CAD Ultra Quiet and Oil-Free Air Compressor is designed to be one of the quietest 6.0 HP air compressors in the industry producing only 78 dB of sound! Perfect for the shop that needs higher CFM outputs but can't stand the disturbance of a noisy compressor!

The 3 powerful 2.0 HP motors operate at only 1680 RPMs creating less noise and wear. The SP Series of Ultra-Quiet air compressor motors have been designed to increase duty cycle and allow for longer continuous run times. The Oil-Free Dual-Piston Pump System is engineered for high performance and durability. The 20060CAD air compressor produces 14.60 CFM @ 90 PSI and 19.80 CFM @ 40 PSI. The Oil-Free Dual Piston pump is designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 1500-hours or less.

The Oil-Free pump allows for use in a variety of temperatures and uneven terrains since there is no oil in the pump. The large 20 Gal. Steel Air Tank is just the right size for shop or garage use. Designed for the person looking for Power, Air Flow and Less Service with at Least 30% Less Noise!

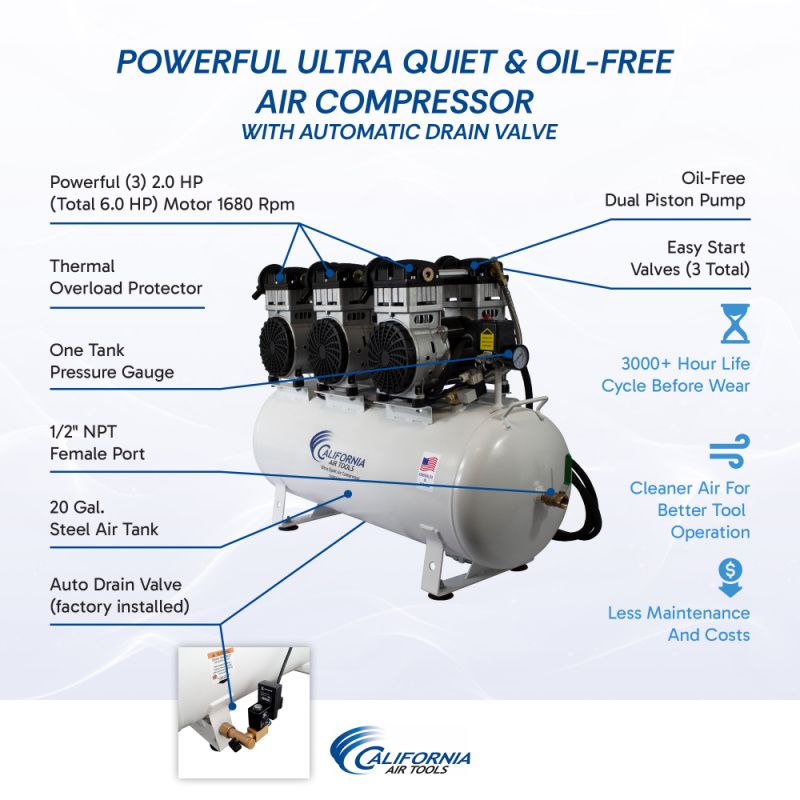

Key Features

  • American Made
  • Ultra Quiet Only 78 Decibels
  • Oil Free Pumps for Less Maintenance and Costs
  • 20gal Steel Tank
  • Automatic Drain Valve
  • Available With a Twin Purge System
  • 3x Powerful 2.0HP Motor
  • Integrated Thermal Overload Protector
  • Low Vibration Motor
  • Dual Motor Design
Specifications
  • 19.8CFM @ 40PSI
  • 14.6CFM @ 90PSI
  • Max Pressure 125PSI
  • Tank Pressure Gauge
  • 1/2" NPT Air Port
  • 24Amp @ 220v
  • 70sec Tank Fill Time
  • 20sec Recovery Time 95-125PSI
  • Motor Speed 1680rpm
  • 3000hr Pump Life
  • Overall Dimensions: 28"H x 40"W x 15"D
  • Product Weight: 178lbs
Product Options

20060CAD

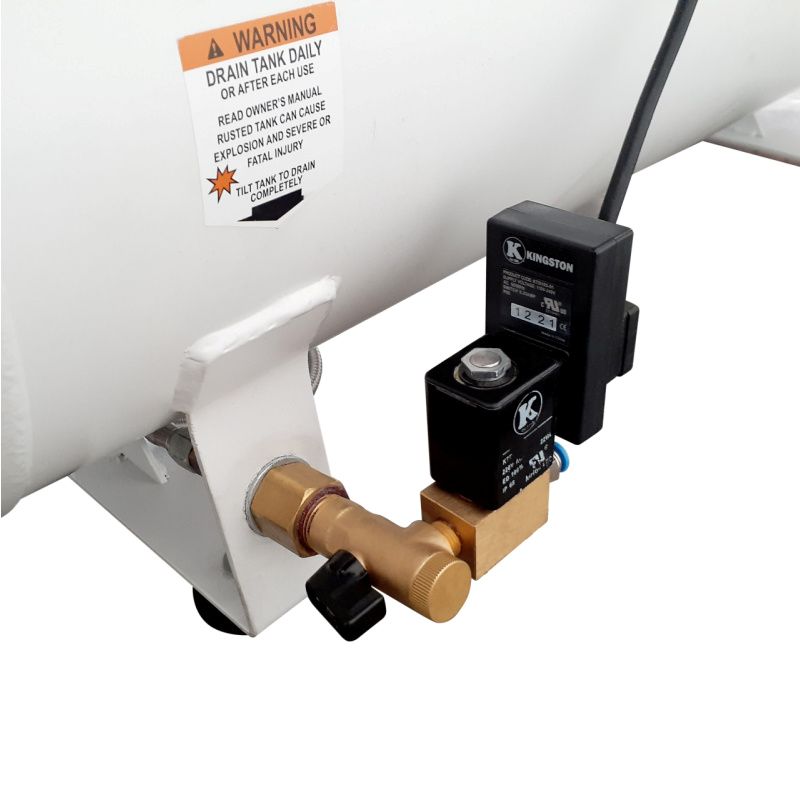

The 20060CAD package included the powerful 20060 compressor with the addition of the built in automatic drain valve. The automatic drain valve periodically purges any build up moisture from within the tank. The auto drain features removes the need for you to manually drain built up moisture and ensure your compressor is operating at 100%

  • 220v AC Powered
  • 3x 2.0HP Pumps
  • 20gal Steel Tank
  • Integrated Auto-Drain
  • 28"H x 39"W x 15"D

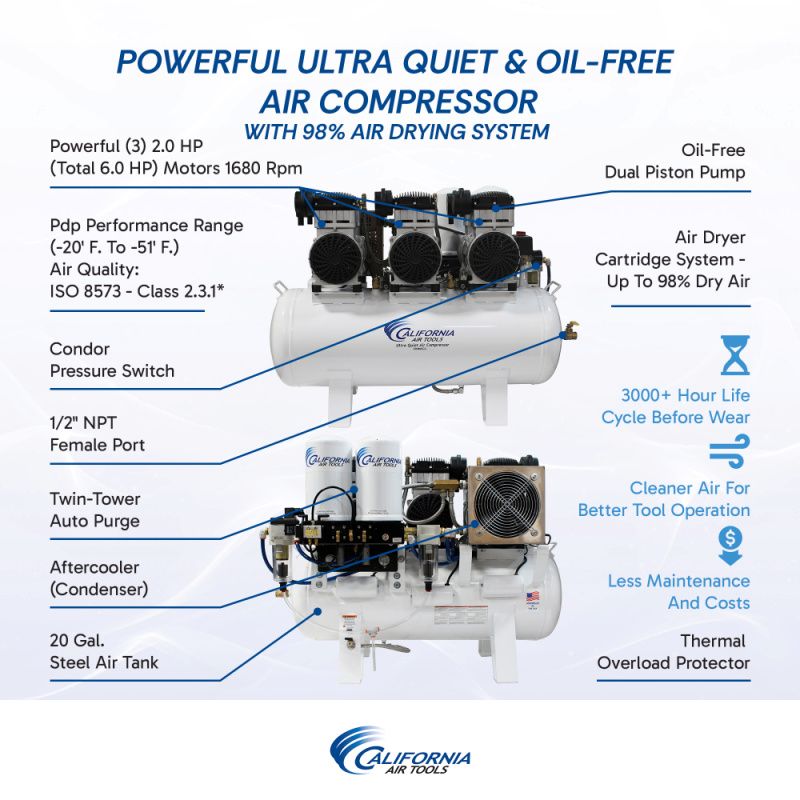

20060DCC

The 20060DCC package build upon the already exceptional 20060CAD system. The 20060DCC upgrades the system with a twin purge dual 98% air dryer tower and dual 1 micron inline filters to ensure the air coming from this system is as clean and dry as possible!

  • 220v AC Powered
  • 3x 2.0HP Pumps
  • 20gal Steel Tank
  • 2x 98% Air Dryers
  • 2x 1 Micron Filters
  • Integrated Auto-Drain
  • 28"H x 39"W x 15"D











Media

20060CAD Overview

20060DCC Overview
